How Many Root Domains Are There? Understanding DNS Hierarchy

Understanding the Root Domain Concept

The Domain Name System (DNS) operates on a hierarchical structure that is fundamental to how the internet functions. At the very top of this hierarchy sits a single root domain, represented by a simple dot (.). This root domain is not a physical location or a website you can visit; rather, it serves as the logical apex of the entire DNS naming system. The root domain acts as the starting point for all domain name resolution processes, directing queries through the appropriate channels to find the information users need. Without this single root domain, the entire system of translating human-readable domain names into numerical IP addresses would collapse, making internet navigation impossible for billions of users worldwide.

The root domain’s singular nature is crucial to understanding DNS architecture. While there is only one root domain conceptually, the infrastructure supporting it is distributed globally through multiple root servers. This distinction between the logical root domain and the physical root server infrastructure is essential for comprehending how modern DNS operates at scale. The root domain itself contains no actual content or services; instead, it functions as a directory that points to all top-level domains (TLDs) such as .com, .org, .net, and country-code domains like .uk or .de. This elegant design has remained stable for decades, proving its effectiveness in managing the exponential growth of the internet.

The 13 Root Server Clusters and Their Global Distribution

While there is only one root domain, the DNS infrastructure includes 13 logical root server clusters, each identified by a letter from A to M. These root servers are operated by 12 different organizations worldwide, with VeriSign Global Registry Services operating two of them (A and J). Each root server cluster is responsible for maintaining copies of the root zone file, which contains the authoritative list of all top-level domains and their corresponding nameserver addresses. The distribution of these 13 root servers across different organizations ensures that no single entity has complete control over the DNS system, promoting stability and security across the global internet infrastructure.

The physical distribution of root servers has evolved significantly since the early days of the internet. As of 2025, there are more than 1,600 root server instances deployed across all six populated continents, though they are reachable through only 13 unique IP addresses. This expansion was made possible through a technique called “anycast,” which allows a single IP address to be served from multiple physical locations simultaneously. When a DNS query is sent to a root server address, it automatically routes to the geographically closest server, ensuring faster response times and improved reliability. This global distribution means that users in Asia, Europe, Africa, the Americas, and Oceania all have local root server instances nearby, dramatically improving DNS resolution speed and resilience.

Root Server Operators and Their Responsibilities

The 13 root server clusters are operated by a diverse group of organizations that have been stewarding the DNS infrastructure since its inception. VeriSign Global Registry Services operates root servers A and J, while other operators include the University of Southern California’s Information Sciences Institute, Cogent Communications, the University of Maryland, NASA Ames Research Center, and the Internet Systems Consortium. Additional operators include the US Department of Defense Network Information Center, the US Army Research Lab, Netnod (a Swedish internet exchange operator), RIPE NCC (the European Regional Internet Registry), ICANN (the Internet Corporation for Assigned Names and Numbers), and the WIDE Project from Japan. This international distribution of operators reflects the collaborative nature of internet governance and ensures that no single country or organization has monopolistic control over the DNS root infrastructure.

Each root server operator maintains complete autonomy over their assigned IP address or addresses. They determine how many physical locations will serve their IP address, where those locations will be situated, what hardware and software will be deployed, and how the infrastructure will be maintained and secured. Some operators maintain only a single location, while others operate dozens of instances across multiple continents. This decentralized approach to root server operation has proven remarkably effective, as the failure of any single root server or even an entire operator’s infrastructure does not significantly impact global DNS resolution. The redundancy built into the system through multiple operators and thousands of distributed instances ensures that the DNS remains operational even during major infrastructure failures or security incidents.

The Root Zone File and DNS Hierarchy Structure

The root zone file is the authoritative database that contains all information about top-level domains and their associated nameservers. This critical file is maintained by the Internet Assigned Numbers Authority (IANA), which is part of ICANN, and is digitally signed using DNSSEC (DNS Security Extensions) to ensure its authenticity and prevent tampering. The root zone file is then distributed to all 13 root server operators, who publish it exactly as received without any modifications or alterations. This strict adherence to the published root zone ensures consistency across all root servers and prevents any single operator from introducing unauthorized changes to the DNS system.

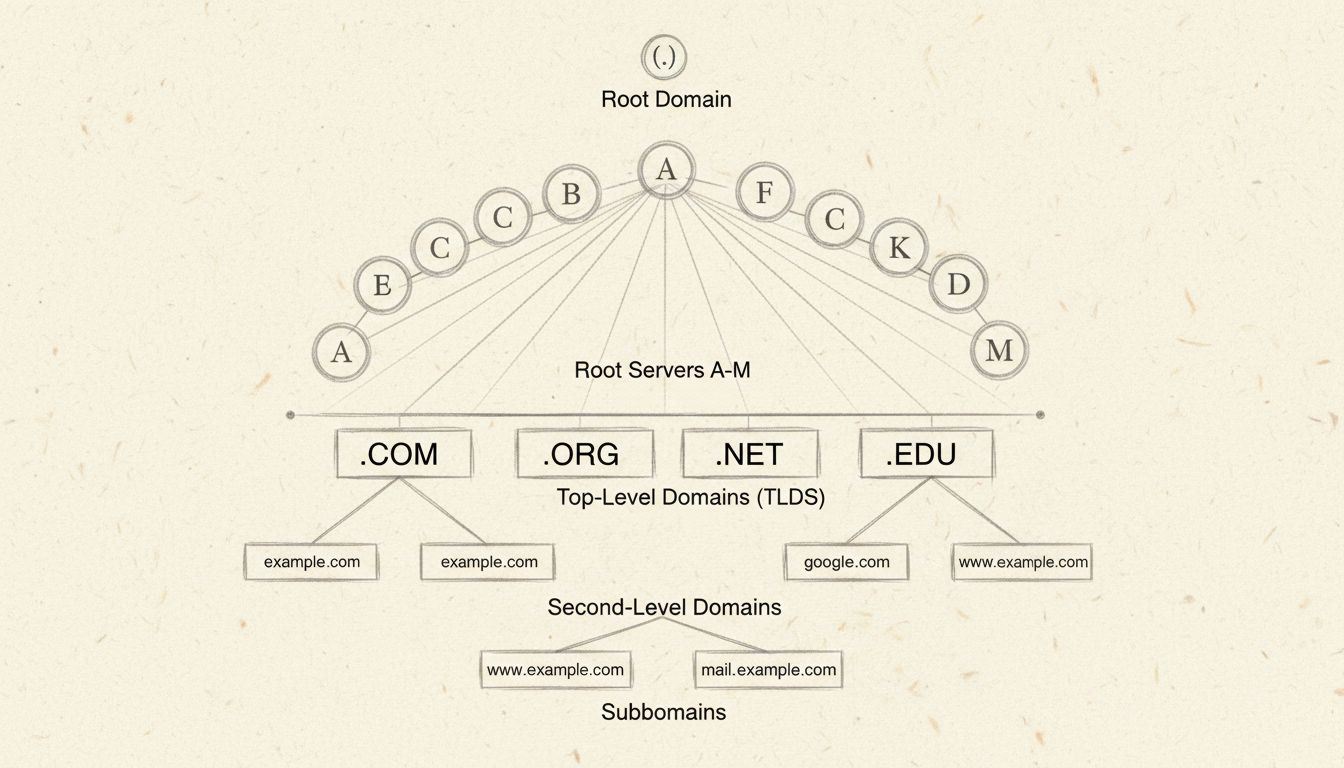

The DNS hierarchy operates in a strictly defined order that ensures efficient and reliable domain name resolution. When a user enters a domain name in their browser, their device contacts a recursive resolver (usually provided by their internet service provider or a public DNS service). This resolver then queries a root server to determine which TLD server should handle the query. The root server responds with the address of the appropriate TLD server, which the resolver then queries to find the authoritative nameserver for the specific domain. Finally, the resolver queries the authoritative nameserver to obtain the IP address associated with the domain name. This multi-step process, while seemingly complex, typically completes in milliseconds and has been optimized through decades of internet development.

How Root Servers Handle Global DNS Queries

Root servers process an enormous volume of DNS queries every single day, with billions of requests flowing through the system continuously. Despite this massive load, root servers are designed to handle queries with remarkable efficiency and speed. When a recursive resolver sends a query to a root server, it receives a response containing the nameserver addresses for the requested top-level domain. The root server does not perform the actual domain name resolution; instead, it acts as a directory that points resolvers to the correct TLD servers. This delegation model is crucial to the scalability of the DNS system, as it distributes the resolution workload across thousands of nameservers rather than concentrating it in a single location.

The anycast technology used to distribute root servers across multiple physical locations is a sophisticated networking technique that automatically routes queries to the nearest available server. When a DNS query is sent to a root server IP address, the internet’s routing protocols automatically direct it to the geographically closest instance of that server. This approach provides several critical benefits: it reduces latency by minimizing the distance data must travel, it improves reliability by providing multiple instances of each root server, and it distributes the query load across many physical servers rather than concentrating it in a few locations. The result is a DNS system that is remarkably resilient, with the ability to continue functioning even if multiple root server instances fail simultaneously.

The Role of Root Servers in Internet Stability and Security

Root servers are considered critical infrastructure for the global internet, and their stability and security are paramount concerns for internet governance organizations. The failure of a single root server typically goes unnoticed by end users because the system is designed with extensive redundancy. If one root server instance becomes unavailable, queries automatically route to other instances of the same root server IP address, or users’ resolvers can query one of the other 12 root server addresses. The probability of all 1,600+ root server instances or all 13 root server IP addresses becoming simultaneously unreachable is extraordinarily low, making the root server system one of the most reliable components of internet infrastructure.

Security of the root servers is maintained through multiple layers of protection, including physical security at data centers, network-level protections, and cryptographic verification of the root zone file through DNSSEC. The root zone file is signed with cryptographic keys that allow resolvers to verify that the information they receive is authentic and has not been tampered with. This security infrastructure has been continuously strengthened over the years as threats to internet infrastructure have evolved. The collaborative governance model, where multiple organizations operate root servers and no single entity has complete control, provides additional security benefits by preventing any single point of failure or compromise from affecting the entire system.

Future Evolution and Considerations for Root Domain Infrastructure

As the internet continues to grow and evolve, the root domain infrastructure faces new challenges and opportunities. The current system of 13 root server IP addresses was established in the early days of the internet and has proven remarkably durable, but internet engineers continue to evaluate whether modifications might be necessary to meet future requirements. The expansion of root server instances through anycast technology has successfully addressed capacity concerns that existed in the early 2000s, when root servers were concentrated in only 13 physical locations, mostly in the United States. The current global distribution of over 1,600 instances demonstrates the effectiveness of this approach in scaling the system to meet modern demands.

The introduction of new top-level domains in recent years has added complexity to the root zone file, which now contains hundreds of TLDs compared to the handful that existed in the early internet era. ICANN’s new generic top-level domain (gTLD) program has expanded the namespace significantly, allowing organizations to register domains under extensions like .tech, .app, .cloud, and many others. This expansion has required careful management of the root zone file to ensure that the system remains efficient and that all new TLDs are properly integrated into the DNS hierarchy. The root server operators and ICANN continue to work together to ensure that the infrastructure can accommodate future growth while maintaining the stability and security that have made the DNS one of the most successful systems ever deployed on the internet.
